RESEARCH AND DEVELOPMENT:
MULTI-PURPOSE DEVICES
The system base is the AR403 block on which the different equipment fits.
Compact and robust, this equipment is ideal for R&D and small productions. They find their place in the pharmaceutical, chemical, food and cosmetic industries as well as in universities and schools.

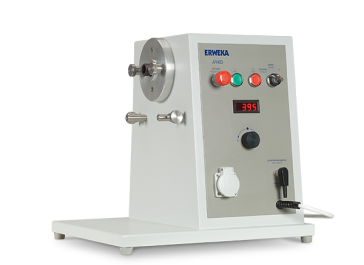

AR 403 MULTI-PURPOSE APPLIANCES
MULTI-PURPOSE DEVICES The basis of the system is the AR403 motor block on which the different equipment is adapted
- Grinding
- Granulation
- Coaters
- Mixing
- Sieving
- Filling
Compact and robust, this equipment is ideal for R&D and small productions. They find their place in the pharmaceutical, chemical, food and cosmetic industries as well as in universities and schools. In the range there is also a small single-punch tablet press.

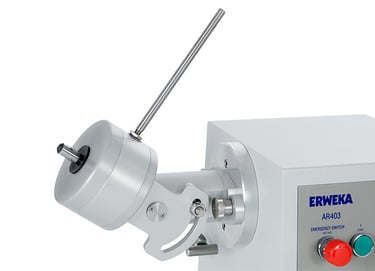

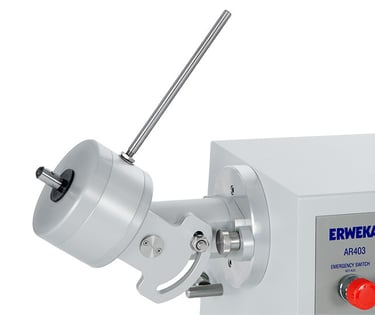

UNIVERSAL GEAR UG
The new Universal Gear uses a modern CNC machined aluminum design for improved durability.
for better durability. It is necessary to adjust the operating angle (±40°) and speed reduction
(1:5.75).
The UG is required for the operation of
- Ball mills (KM)
- Cubic mixer (KB 15/20/30/S)
- Double cone mixer (DKM)
- Pelletizer (GTE)
- Coating tank (DKE/ DKS)
- Polishing drum (PT)
AR403 Attachment List
GRANULATOR

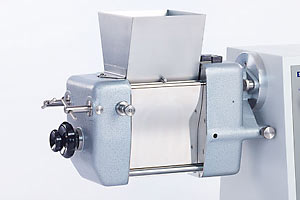

FGS wet granulator
Wet granulator with oscillating rotor for the production of wet granules.

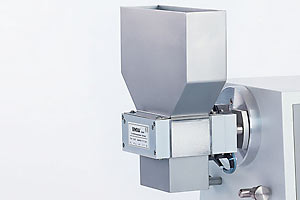

Double roller crusher TG 2000
Dry granulator with two rollers driven in opposite direction from inside to outside
BLENDER

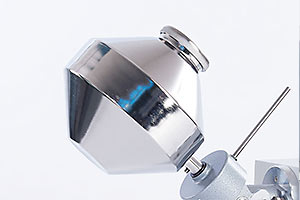

DKM Double Cone Mixer
Double cone mixer for mixing free-flowing powders and granules.

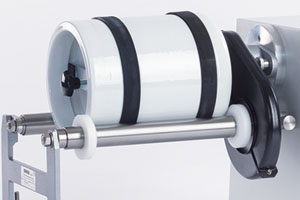

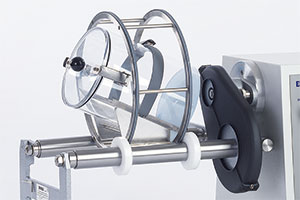

RM Drum Hoop Mixer
Drum hoop mixer with diagonal placement of drums in the hoop.
SW 1/S laboratory high-speed mixer
High-speed laboratory mixer operating on the plow and share principle

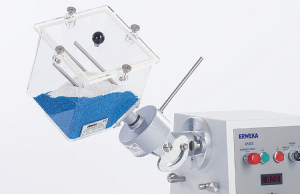

KB Cube Blender
The cube blender uses a tumbling motion to produce a consistent mixture in a short time.

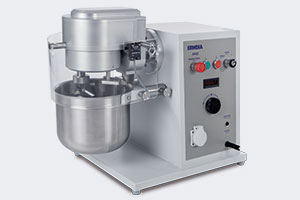

PRS Planetary Stirrer
Planetary stirring unit for mixing creams, ointments, pastes, wet powders and liquids
Y5 mixer
Y5 mixer with Y-shaped mixing tank for gentle mixing of solid and flowable materials (bulk materials).

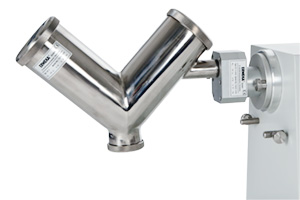

V-Mixer VB-3
VB-3 mixer with V-shaped mixing tank for gentle mixing of solid and well-flowing materials (bulk materials).
GRINDING

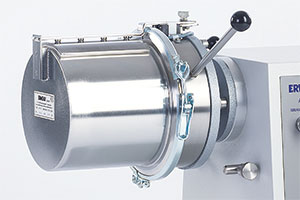

KM ball mill
KM ball mill for grinding crystalline materials and for mixing dry or, in certain circumstances, wet materials.

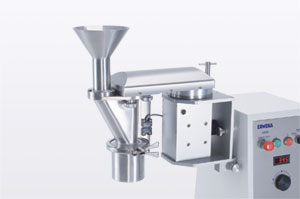

CM Conical Mill
The CM conical mill is a product feeding system for the development of applications in the pharmaceutical and food industries.
COATING

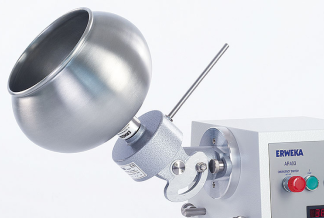

Coating Pans DKE/DKS
The universal gear is required to attach
the coating pan to the motor drive. This site allows you to adjust the angle of the tray
and obtain an optimal result from the
coating process.
An infrared heater can be mounted
above the tray to speed up drying if
necessary.
DKE, stainless steel tank, volume
9.5 l, maximum capacity 30% 275 mm
external diameter.
DKS, stainless steel container, volume
15.0 l, maximum capacity 30% 350 mm
FILLING
Filling and dosing of FDS ointments
The FDS dosing machine is suitable for filling precise quantities of ointments, creams,
emulsions and similar products into tubes, boxes, bottles, etc
POLISHING

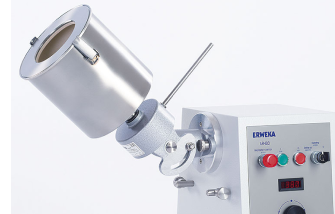

PT polishing drum
Polishing drum for polishing coated tablets. The drum is equipped with interchangeable felt parts
